Watchmaking

Transparent showcase clock.

Large showcase clock with a transparent face, no visible central hand pivot, peripheral disc drive and atomic-time synchronization.

#2012–2013#Watchmaking#Mechatronics

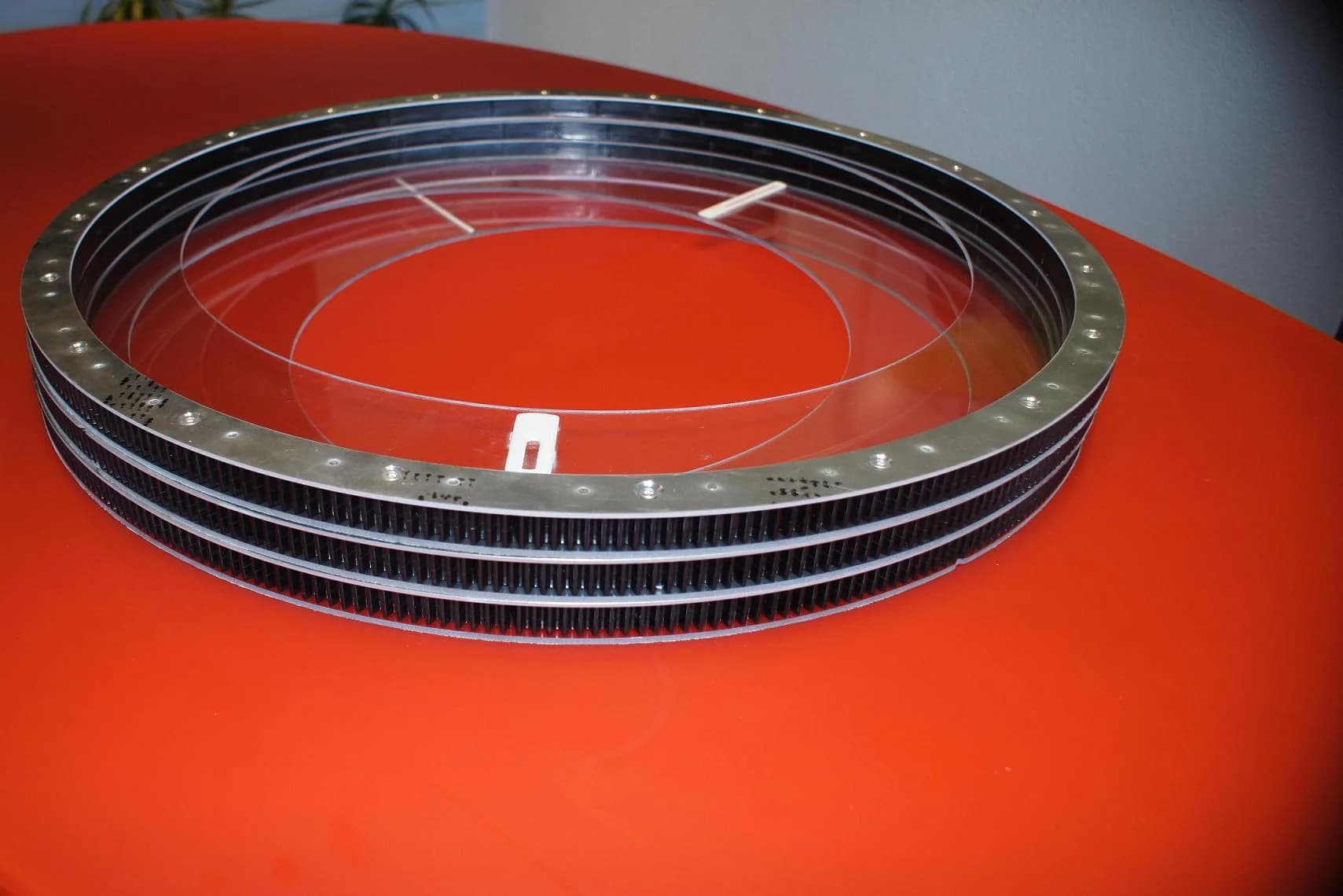

Functional prototype of the transparent showcase clock with peripheral mechanism
Project images — 2
Project images — 3
Project images — 4

Project images 1 / 4

Project overview

Developed for a watch retailer’s window in Geneva, the clock preserves a clear view through its face without a visible hand pivot at the center. DOMTEKNIKA developed the complete electrical and mechanical concept using transparent rotating discs driven at their periphery, integrated atomic-clock synchronization, coordinated the design study and built a functional prototype with injection-molded gear segments.

What we handled

  • Complete electrical and mechanical concept for a large transparent showcase clock.

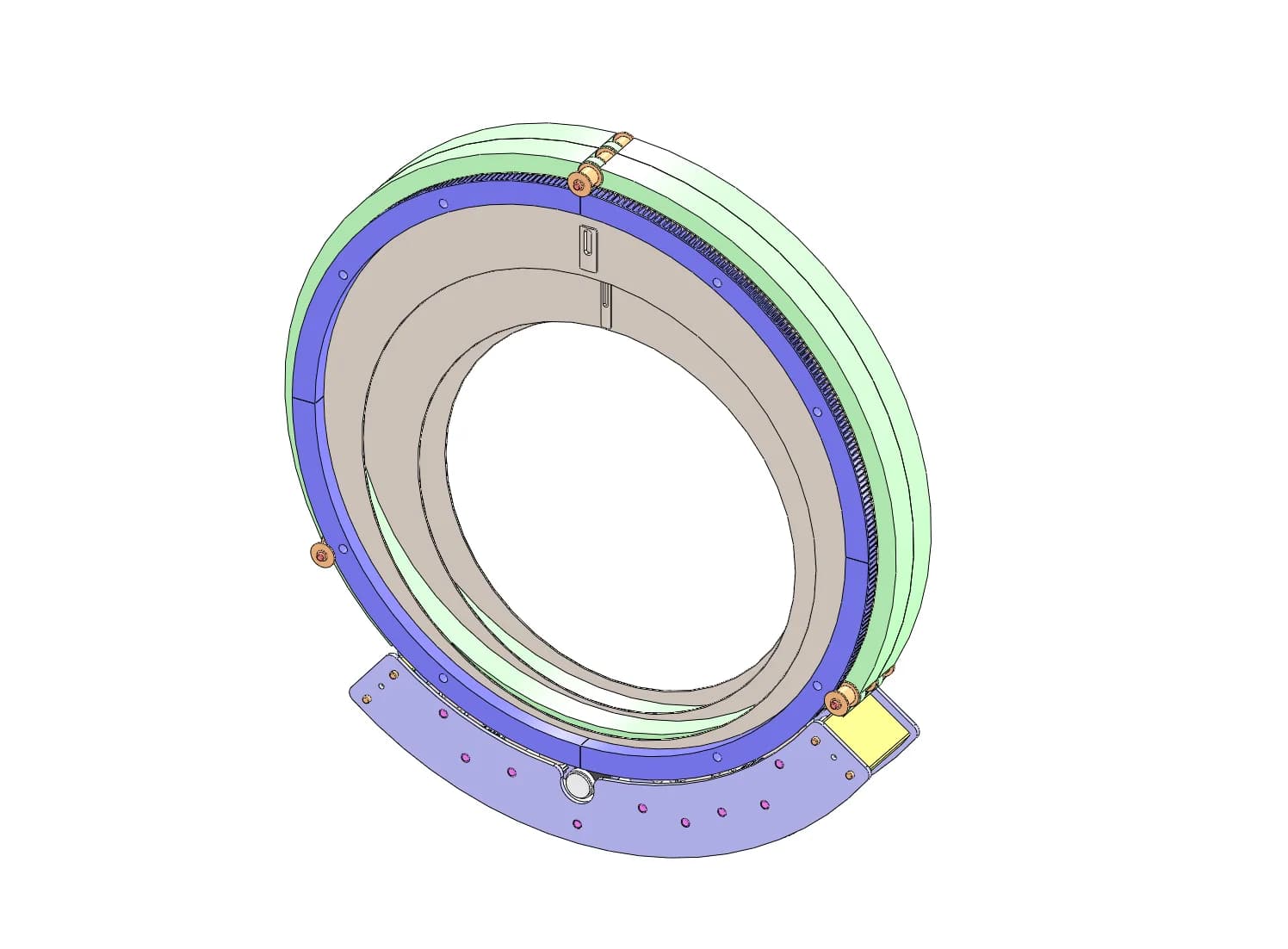

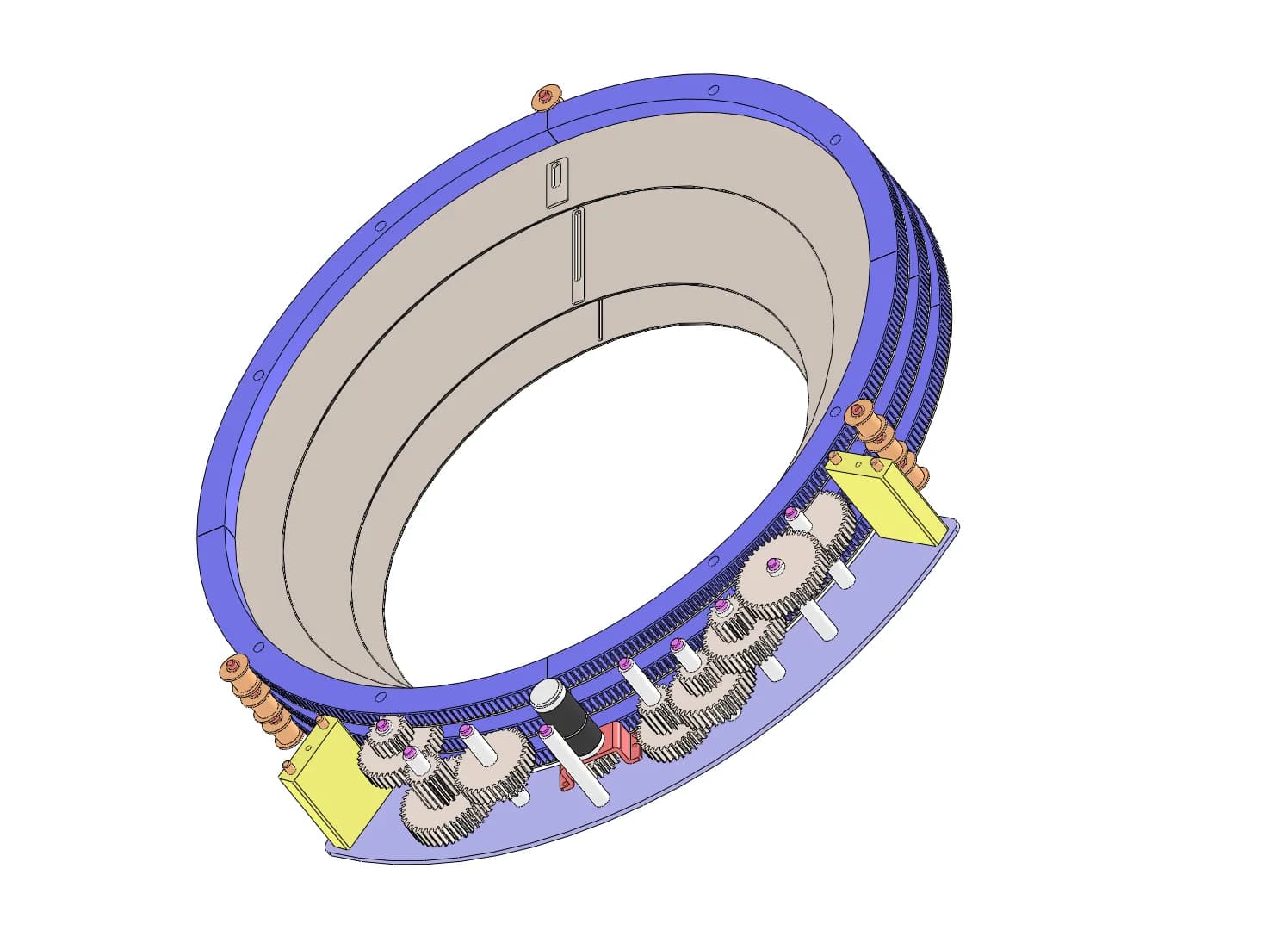

  • Transparent discs driven from the periphery to eliminate a visible central hand pivot.
  • Atomic-clock connection for automatic time synchronization.
  • Design-study coordination and functional prototype with injection-molded gear segments.
